Production Flow Analysis (PFA)

Introduction

Production Flow Analysis (PFA) is a method under, Group Technology which uses a matrix of part numbers and machine numbers to group families. In the matrices below, columns represent the machines whose numbers and names are at the top. Rows represent parts whose numbers and names are on the left. When a particular part requires a particular machine, the operation sequence number is in the intersecting spreadsheet cell. Sometimes, merely an "X" signifies that a particular part needs a particular machine.

Pump machining: Production Flow Analysis, Source: http://www.strategosinc.com/

Most part families have a "natural sequence." For example "Lathe" normally precedes "Deburr". This natural sequence dominates and becomes the basis for the workcell layout. The sequence issues when developing the PFA matrix is normally ignored.

It is difficult to see order or similarity in the first matrix. Rearranging the rows and columns, as in the second matrix, clearly shows families of similar parts and the machines required to build them. These machines form a workcell.

This example illustrates the principle but it oversimplifies. In practice, these matrices can become quite large. A matrix with more than a few hundred parts and 20 or so machines becomes unwieldy for manual manipulation. However, it can be done.

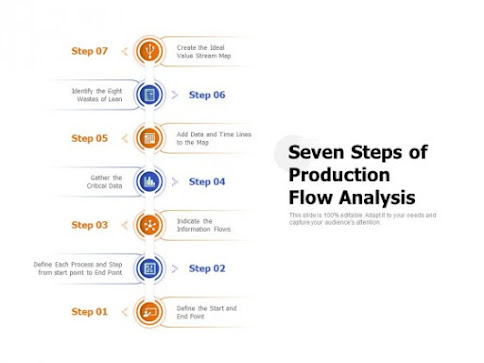

Steps in PFA, Source: https://www.slidegeeks.com/

Computer programs are available for manipulating large matrices but they cannot solve the problem of inconsistent routings that is often encountered in a PFA analysis. Inconsistent routing means that similar parts use different machines. This occurs for a variety of reasons such as:

• Parts have usually entered the product mix over a period of many years. Different conditions and different planners over this time have arrived at different routing decisions.

• Capacity issues may influence routing decisions. For example, machine A would normally be used for a particular operation but it is heavily loaded so the process planner uses machine B.

• Different process planners have different backgrounds and a different bias. This may lead to different routings for the same part.

Analysts encounter inconsistent routings in most PFA analyses. If the product mix is not too complex, they can make intuitive manual adjustments. When the product mix becomes larger than 100 or so items, PFA becomes too cumbersome and a Coding & Classification analysis is indicated.
